Price: $265.90
(as of Jul 17, 2022 05:28:28 UTC – Details)
Notice:
– Battery and Tire are Not Included.
– Battery Recommendation: Lead Acid Battery featured in nominal voltage 48v, nominal capacity 17-20Ah is compatible with the motor.
– Must to wear a helmet before riding this electric bicycle for protection.
– Please go to those automobile repair shop with standard business license for modification.
– If you have any question about the compatible Model, please contact our Customer Service before purchasing.
– For safety reasons, it is not recommended to use in rainy days
– It is only applicable to bicycle/snow bike, not tricycles, tractors, etc;
– Suitable battery type and parameters: 48V, 30a, travel about 20km;Recommended capacity is at least 8.8AH or above.
Specification:
20Inch:

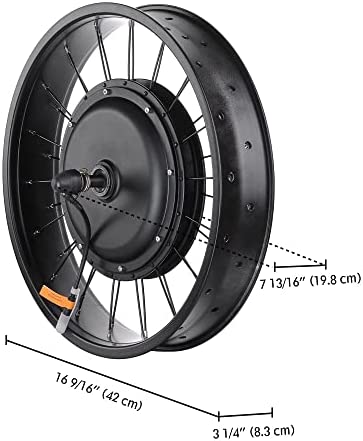

– Overall Dimension: 16 9/16" x 3 1/4" (42 x 8.3 cm)
– Net weight: 20.9 Lbs (9.5 kg)
26Inch:
– Overall Dimension: 22 7/16" x 3 1/4" (57 x 8.3 cm)
– Net weight: 25.3 Lbs (11.5 kg)
– Axle Length: 7 13/16" (19.8 cm)
– Front Dropout Spacing: 5 5/16" (13.5 cm)
– Controller Power: 1000W 26A
– Motor Diameter: 9 1/2" (24.2 cm)
– Motor Power: 1000W
– Motor Voltage: 48V
– Motor Rotating Speed: 600 RPM
– High Motor Efficiency: 80%
– Hub size: 22 7/16" (57 cm)
Package Content:

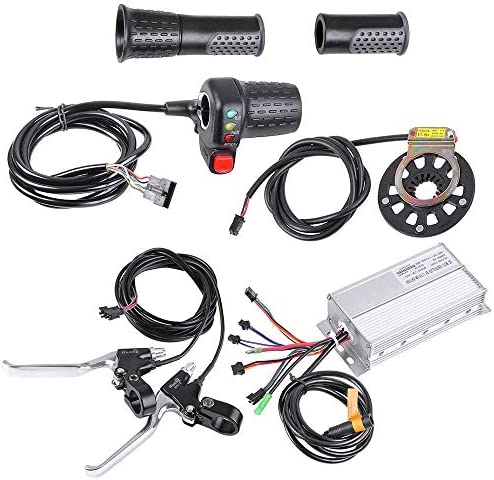

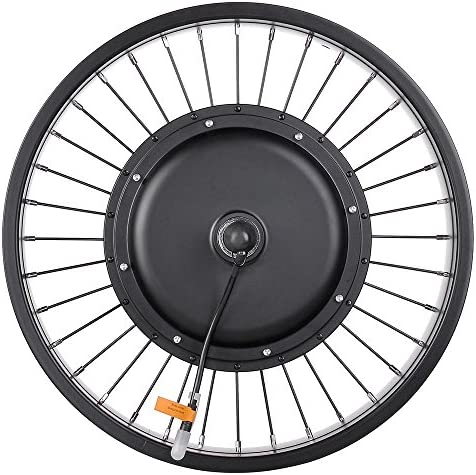

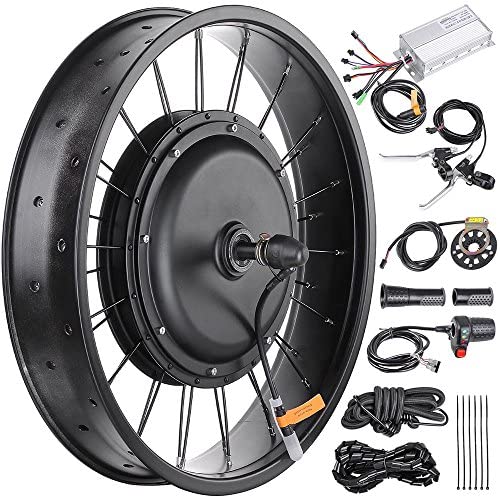

– 1x 20/26" Front Wheel with Brushless Hub Motor (Tire Not Included)
– 1x Electric Controller
– 2x Hand Brakes
– 2x Handle Grips
– 1x Twist Throttle
– 1x Pedal Assistant Sensor
– 1x Lead Acid Battery Charger
– 1x Battery Bag

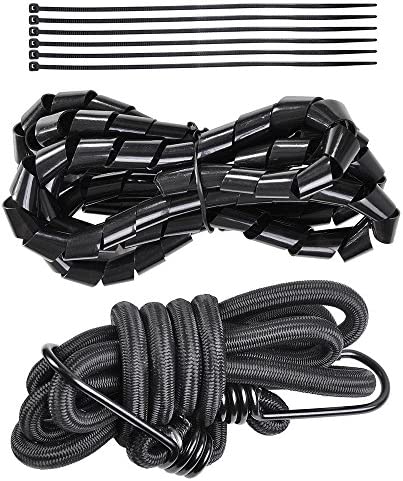

– 1x Rope
– 1x Set of Winding Pipe and Cable Tie
– 1 set winding tube with ties
– 1x Manual

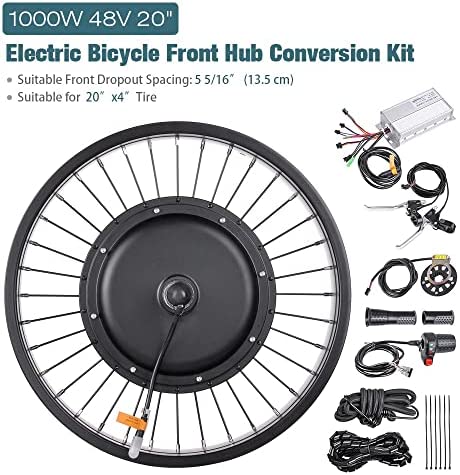

1000W 48V 20″ Electric Bicycle Front Hub Conversion Kit, fit for 5 5/16″ front dropout spacing and 20″x4″ tire, with a speed of 28 mile/h (45 km/h), make your bicycle an electric power moped, brushless hub motor for noiseless running, to fully enjoy the pleasure of riding.

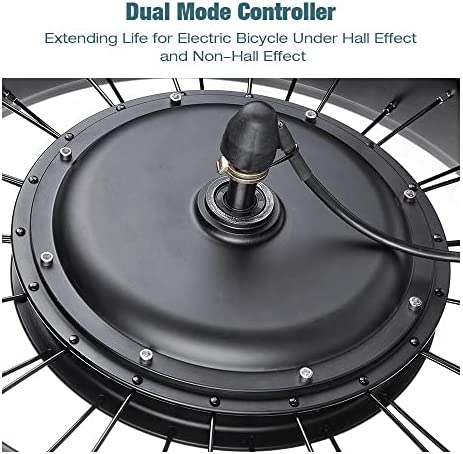

Dual Mode Controller – Motor works under Hall effect and non-Hall effect, extend life for electric bicycle (If the components break down, controller will switch into non-hall effect mode, the motor will still be working ).

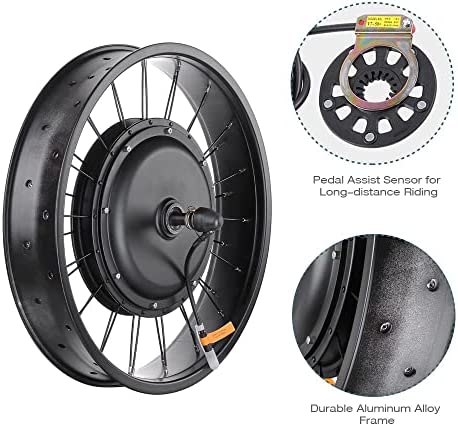

Pedal Assist Sensor – To sense your pedal cadence and accordingly adjust motor turning rate, get power assistant without using throttle, great for a long-distance journey, avoid wrist pain from keep pressing.
Durable Frame – Aluminum alloy frame for durability and stability. Convenient to Use – Twist Throttle makes speed control as a breeze.
Hand brakes shut off the motor automatically to save energy and improve safety. CE certificated for safety assurance. Environmental Protection – Powered by battery, without carbon dioxide emissions.
