Price: $503.90
(as of Jan 01, 2023 21:23:44 UTC – Details)
Specification:
Item Type: 20 Inch Rear Wheel 48V 1500W Electric Bike Conversion Kit
Material: Aluminum Alloy + Stainless Steel
Product Color: As Pictures Shown
Controller Box Size: Approx. 183x83x43mm / 7.2×3.3×1.7in
Meter: Approx. 110x60mm / 4.3×2.4in
Opening Size: Approx. 170mm / 6.7in
Disc Brake Rotor Size: Approx. 160mm / 6.3in
Applicable Tire Size for Motor Wheel: 20 Inches
Product Weight: Approx. 11550g / 407.4oz
Motor: Rear Drive Threaded Freewheel Motor
Voltage: 48V
Power: 1500W
Speed: 45-50 km/h
Speed: 414-487 Rpm
Torque: 71-74.6 N.M
Connector Type: Ordinary Connector
Matching Controller Current: 35A
Rim: SC73
Moment Arm: M16
Motor Structure: DC Motor
Magnet Height: 35H
Number of Poles of Magnet: 46
Brake Type: Disc Brake
Function Description of Display Meter:
1. Display function: Speed display, power assist gear display, power indicator, fault prompt, total mileage, single mileage, headlight display, single driving time display.
2. Control and setting functions: Power switch control, headlight switch control, 6Km/h jog control, wheel diameter setting, maximum speed setting, idle automatic sleep time setting, backlight brightness setting, voltage level setting, for PAS connect.

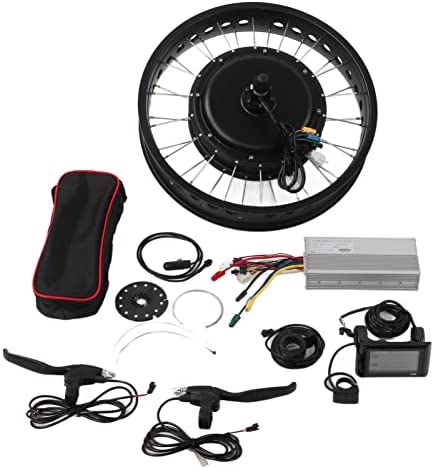

Package List:
1 x Rear Drive Motor Wheel
1 x Controller
1 x S900 LCD Meter
1 x Throttle Shifter
2 x Power Off Brake Lever
1 x D12 Power Assist Sensor Wiring
1 x D12 Power Assist Sensor Assist Sheet
1 x D12 Power Assist Sensor Ring
2 x Cable Tie

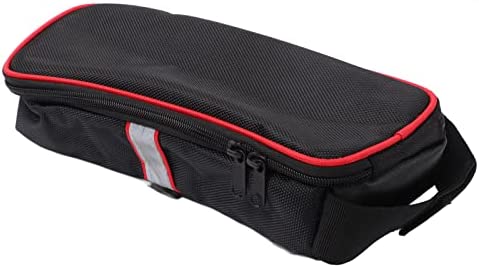

1 x Controller Bag
1 x LCD Meter Manual

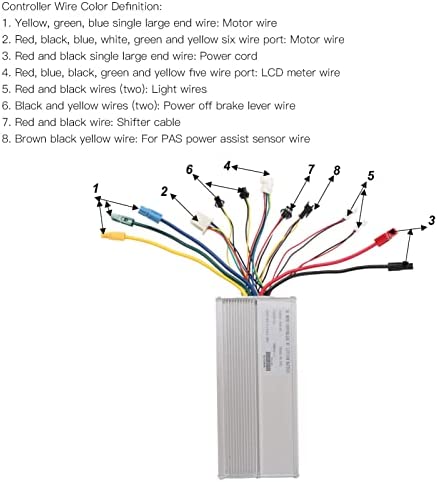

1 x Controller Wiring Manual
Electric Bike Conversion KitMETAL MATERIAL: The brushless motor controller shell is made of high-quality metal, with a solid structure, high-performance wires and interfaces that are durable, ensuring low failure rate for long-term use.
HIGH QUALITY: The aluminum alloy rim has been finely processed to effectively strengthen the edge of the rim, with strong load-bearing capacity and far more comfort than other types of motors.Electric bicycle modification accessories
Electric bicycle modification accessoriesHIGH PERFORMANCE: The groove design has a good heat dissipation function, which can better protect the internal circuit and avoid thermal overload. It also provides stable speed and sensitive braking and direction change control.
