Price: $509.99
(as of Jan 01, 2023 03:56:25 UTC – Details)
Waterproof 48V 1200W Fat Tire 20″ Direct Drive Conversion Kit: LED-LCD Display, Thumb-Twist Throttle
Introducing our 2019 model conversion kits. A complete waterproof system from connectors to the motor ensuring reliability and efficiency. We have also introduced new products like the SW830 LCD display along with the 20″ Fat Tire Conversion Kit
eBikeling Fat Tire Direct Drive Brushless Electric Bicycle Conversion Kits come with a 1200W hub motor and a 30Amp controller.
Kits are ready to install with aluminum double walled rim and hub motor are already attached. All you need to do is to transfer original tire.
We have two throttle control options to choose from, twist or thumb.
Waterproof
Aluminum rims have openings for a schrader type valve.
Kit doesn’t have regen brake option.
PAS/Brake Levers are optional. Kits will operate without them.
You will be able to use your own brakes and freewheel.
Recommended tire width: 4″

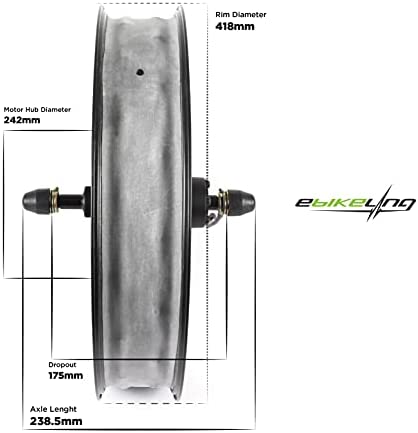

Rim Width (Inner): 80mm
Rim Diameter (Outer): 418mm
Rim Diameter (Inner): 380mm
Spoke: 78mm 12G Carbon Steel Copper Nipples
Rear dropout: 175mm
Rear Axle Length: 238.5mm
Motor Wheel Weight 15.8lbs
Motor Torque: 30 Nm Efficiency > 82%
Motor RPM (Nominal): 430
Motor Hub Diameter: 242mm
Motor Magnets: 46
Peak Power: 1.45kW
Operating Mode: S1

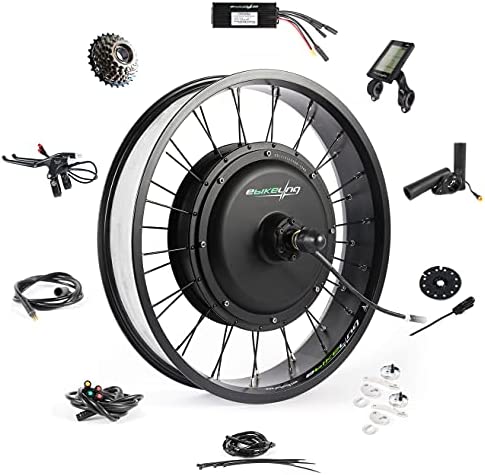

Package Includes
Direct Drive Brushless Hub Motor
Brushless Motor Controller (No matching battery connectors or adapters included)
LED or upgraded LCD Display
Twist or Thumb Throttle
Pedal Assist Sensor
Freewheel (for rear kit)
Two Brake Levers with safety switches, V type and Disc brake compatible
2xTorque arm
Tube liner
Installation hardware and zip ties
Batteries not included
Ebike Conversion Kit includes all necessary components for installation; the wheel hub motor, controller, display, throttle, brake levers, pedal-assist system, torque arm, and cable ties. Please, note that in this Electric Bike Kit, BATTERY & TIRE ARE NOT INCLUDED!
Upgrade your ebike with the LCD Display in the conversion kit. It shows all the essential information such as battery percentage, speed, total and single trip distance, wattage, PAS levels, and error codes for easier troubleshooting. Basically, it is your I in the tire!
Continue to pedal: Pedal Assist Sensor (PAS) allows you to ride your electric bike kit without a throttle response. You may operate your electric bicycle either way. Avoid uncomfortable wrist positions and simply pedal anytime, anywhere.
We offer a 1-year warranty on hub motors and batteries. All other components are under a 3-month warranty. We provide technical support and hassle-free returns, full refund, or replacements. We strive to ensure your satisfaction with our service and products. Note: Please ensure you select a specific variant from size and style. By default, the first variant of each option will be selected.
