Price: $237.77
(as of Jan 03, 2023 06:23:24 UTC – Details)
JauoPay Electric Bicycle Conversion Kit 26″ Front Wheel Fat Tire 48V 1000W Brushless Gearless Hub Motor 28 Mph (45 km/h) High Speed Road Bike Snow Tire Conversion Kit
Key Features:

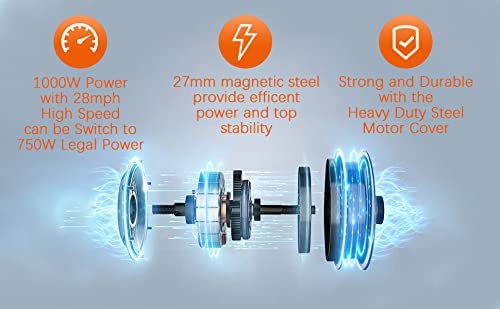

1. 48V 1000W super power Brushless Gearless Hub Motor
2. Rare-earth metal magnet are used in the motor to efficiently produce large power.
3. Aluminum Alloy Double Wall Rim with Carbon Steel 12G×2.6mm Spokes.
4. Fat Tire Frame Design, can ride in all kinds of terrain such as snow, mountain, beach, road and etc. 5. Twist throttle has battery level display and power-cut off button
6. Brake Levers cut off the power supply to the motor safely.
7. 8 Point Crank speed sensor for pedal assist, can allow you to works with all pedals, including Speedplay and Eggbeaters.
8. Dual Mode Controller, Motor works under Hall effect and non-Hall effect, extend life for electric bicycle.
(If the components break down, controller will switch into non-hall effect mode, the motor will still be working.)

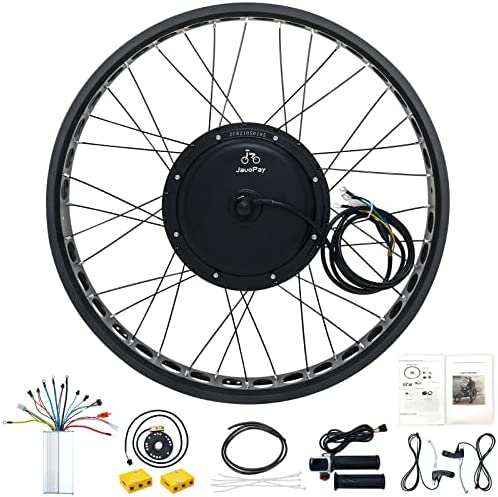

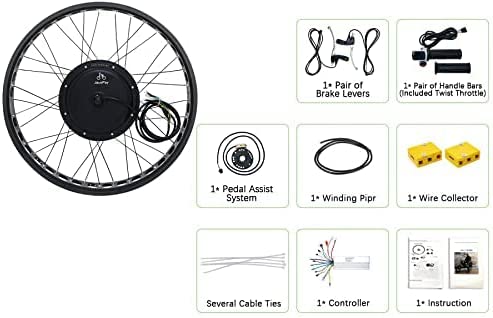

Package Include:
1x Brushless Gearless Front Hub Motor Wheel Frame
1x Pedal Assist Crank Sensor
1x Cable Ties & Plastic Coil
1x Pair of Handle Bar(Twist Throttle included)
1x Pair of Brake Handles
1x User Manual
Battery Advice:
The 1000 W system requires a 48 Volt battery with a nominal capacity not less than 11.6 Ah, or a 52 Volt battery with a nominal capacity not less than 13 Ah(If you chasing a Higher Speed.)

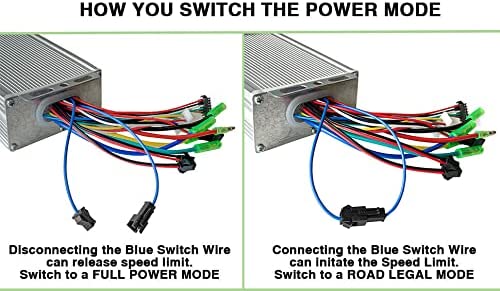

[High Power] – 48V 1000W Brushless Gearless Front Hub Motor can be restricted to 750W Road-Legal Mode with a little blue wire. 470 RPM, efficiency ≥ 80%. Effective stopping power as soon as you hit the brakes. A maximum torque of 45 N.M. Can reach 34 Mph(55 km/h) with 52 Volt battery.
[Dual Mode Controller] – Motor works under Hall effect and non-Hall effect, extend life for electric bicycle.(If the components break down, controller will switch into non-hall effect mode, the motor will still be working.)
[Pedal Assist Sensor] – 8 point high effective Pedal Assist Sensor (PAS) allows you to ride your electric bike kit without a throttle response. You may operate your electric bike with electric power and your own effort with a nice and easy riding way.

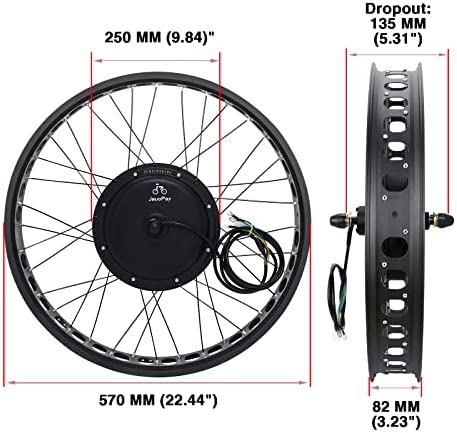

[Fat Tire] – 3.23″ width fat tire wheel, suitable for a 26″ x 4″~4.25″ Tires. Can allow you to ride in all kinds of terrain such as snow, mountain, beach, road and etc.
[Conversion Accessories Included] – Front Hub Motor Wheel, Controller, Twist Throttle and Handle Bar, Brake Levers, 8 Point Pedal Assist Sensor, Cable Ties and User Manual. (Battery and Tire are not included.)
